INOVANCE ISMG1-24D17CD-R1A1FA Hydraulic Servo Motor for Injection Molding Machine Electrical Equipmentin Stock

The IS580 series servo drive, a technical upgrade from the IS300 series, is developed for high-performance vector control of permanent magnet synchronous motors (PMSMs). With the high-performance vector control technology, the drive is specially optimized for process control specific to injection molding machines, such as control on the injection speed and pressure holding accuracy. It also offers stability control when used with an injection molding machine controller. The drive comes with communication bus functions and a software tool for monitoring and supports multiple encoder types. It provides rich and powerful functions with stable performance. It is applicable to industries such as plastic molding, pipe extrusion, shoe making, rubber producing, and metal injection molding. Compared with the IS300 series, it features better oil pressure control performance, faster response to pressure and speed changes, lower fluctuations in steady state, and a smaller size.

The IS580 series servo drive, a technical upgrade from the IS300 series, is developed for high-performance vector control of permanent magnet synchronous motors (PMSMs). With the high-performance vector control technology, the drive is specially optimized for process control specific to injection molding machines, such as control on the injection speed and pressure holding accuracy. It also offers stability control when used with an injection molding machine controller. The drive comes with communication bus functions and a software tool for monitoring and supports multiple encoder types. It provides rich and powerful functions with stable performance. It is applicable to industries such as plastic molding, pipe extrusion, shoe making, rubber producing, and metal injection molding. Compared with the IS300 series, it features better oil pressure control performance, faster response to pressure and speed changes, lower fluctuations in steady state, and a smaller size.

The IS580 series servo drive, a technical upgrade from the IS300 series, is developed for high-performance vector control of permanent magnet synchronous motors (PMSMs). With the high-performance vector control technology, the drive is specially optimized for process control specific to injection molding machines, such as control on the injection speed and pressure holding accuracy. It also offers stability control when used with an injection molding machine controller. The drive comes with communication bus functions and a software tool for monitoring and supports multiple encoder types. It provides rich and powerful functions with stable performance. It is applicable to industries such as plastic molding, pipe extrusion, shoe making, rubber producing, and metal injection molding. Compared with the IS300 series, it features better oil pressure control performance, faster response to pressure and speed changes, lower fluctuations in steady state, and a smaller size.

The IS580 series servo drive, a technical upgrade from the IS300 series, is developed for high-performance vector control of permanent magnet synchronous motors (PMSMs). With the high-performance vector control technology, the drive is specially optimized for process control specific to injection molding machines, such as control on the injection speed and pressure holding accuracy. It also offers stability control when used with an injection molding machine controller. The drive comes with communication bus functions and a software tool for monitoring and supports multiple encoder types. It provides rich and powerful functions with stable performance. It is applicable to industries such as plastic molding, pipe extrusion, shoe making, rubber producing, and metal injection molding. Compared with the IS300 series, it features better oil pressure control performance, faster response to pressure and speed changes, lower fluctuations in steady state, and a smaller size.

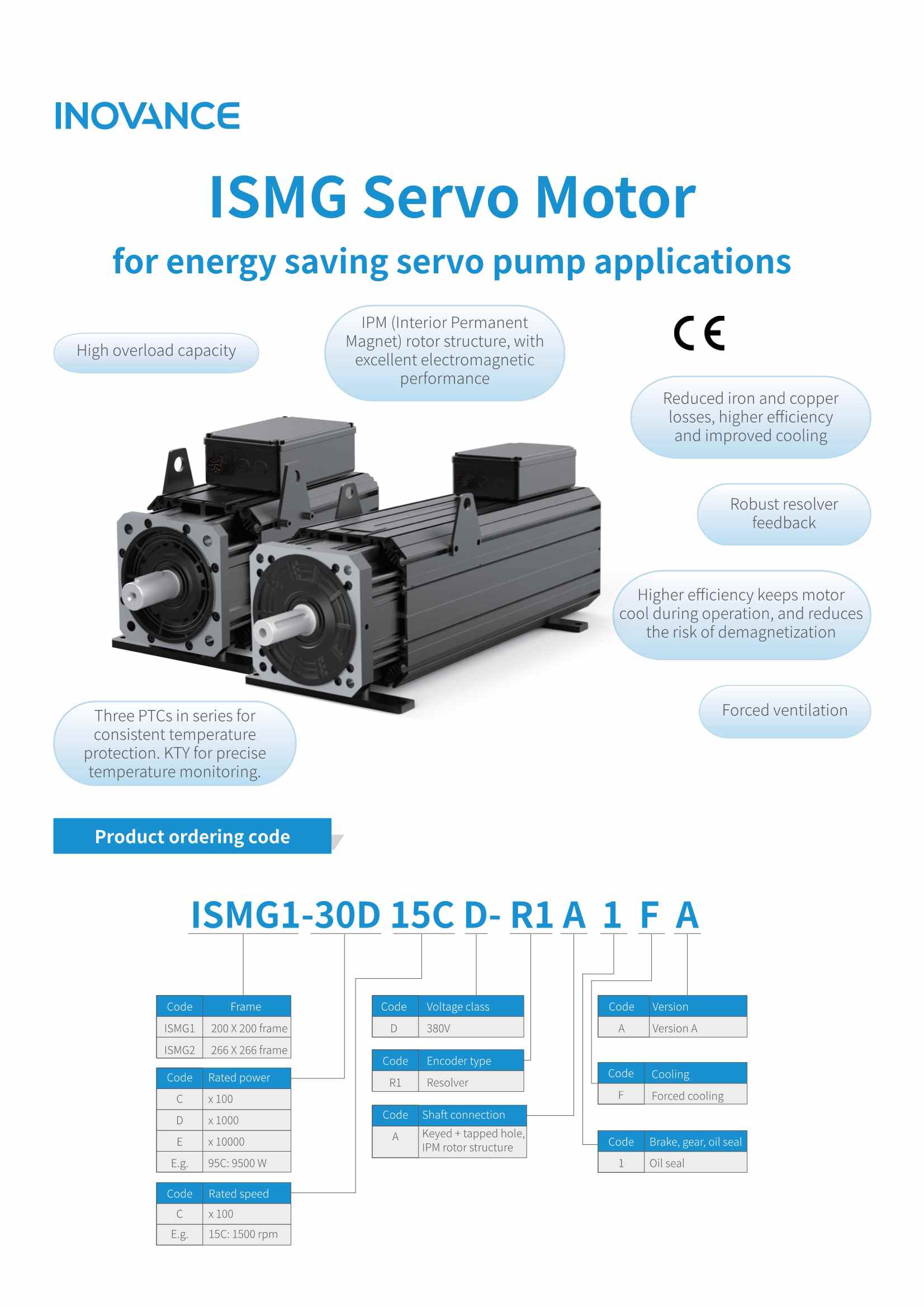

The ISMG series general-purpose high-power servo motors are three-phase AC permanent magnet servo motors with independent cooling fans. They are available in two variants, ISMG1 and ISMG2, with the ISMG1 model supporting an optional brake. The ISMG series motors feature low temperature rise, low current, and strong overspeed capability. Their unique design with low rotor inertia ensures high responsiveness. They come with a 23-bit multi-turn absolute encoder as standard, which, when combined with Inovance servo drives, enables precise position control. These motors find wide applications in various industries, including stackers, hydraulics, metallurgy, printing, and packaging.

The ISMG series general-purpose high-power servo motors are three-phase AC permanent magnet servo motors with independent cooling fans. They are available in two variants, ISMG1 and ISMG2, with the ISMG1 model supporting an optional brake. The ISMG series motors feature low temperature rise, low current, and strong overspeed capability. Their unique design with low rotor inertia ensures high responsiveness. They come with a 23-bit multi-turn absolute encoder as standard, which, when combined with Inovance servo drives, enables precise position control. These motors find wide applications in various industries, including stackers, hydraulics, metallurgy, printing, and packaging.

The ISMG series general-purpose high-power servo motors are three-phase AC permanent magnet servo motors with independent cooling fans. They are available in two variants, ISMG1 and ISMG2, with the ISMG1 model supporting an optional brake. The ISMG series motors feature low temperature rise, low current, and strong overspeed capability. Their unique design with low rotor inertia ensures high responsiveness. They come with a 23-bit multi-turn absolute encoder as standard, which, when combined with Inovance servo drives, enables precise position control. These motors find wide applications in various industries, including stackers, hydraulics, metallurgy, printing, and packaging.

The ISMG series general-purpose high-power servo motors are three-phase AC permanent magnet servo motors with independent cooling fans. They are available in two variants, ISMG1 and ISMG2, with the ISMG1 model supporting an optional brake. The ISMG series motors feature low temperature rise, low current, and strong overspeed capability. Their unique design with low rotor inertia ensures high responsiveness. They come with a 23-bit multi-turn absolute encoder as standard, which, when combined with Inovance servo drives, enables precise position control. These motors find wide applications in various industries, including stackers, hydraulics, metallurgy, printing, and packaging.
