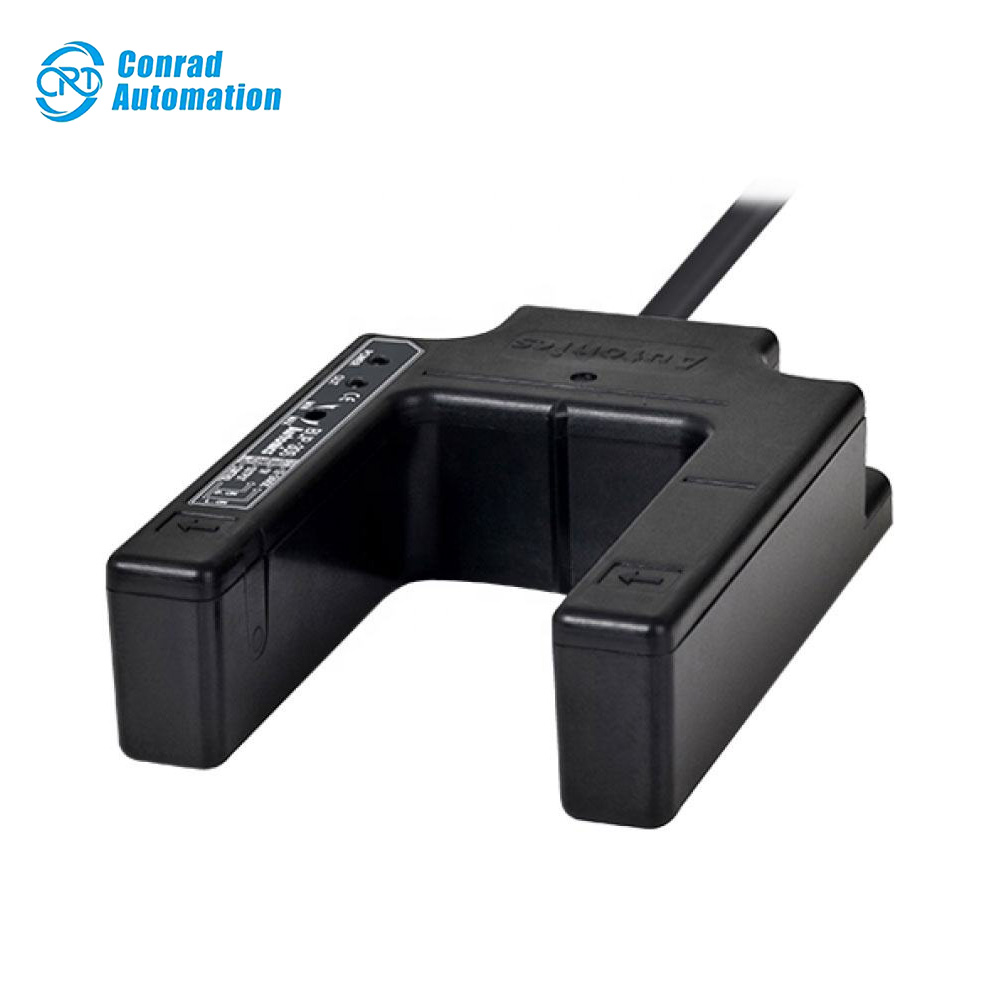

Sensing type : Through-beam type Sensing Channel : 1-channel Sensing distance : 30mm Sensing target : Opaquematerial of min. Ø1.5mm Light source : Infrared LED(940nm) Power voltage : 12-24VDC  ±10%(ripple P-P: max. 10%) Operation mode : Light ON/Dark ON(set by control wire) Control output : NPN open collector

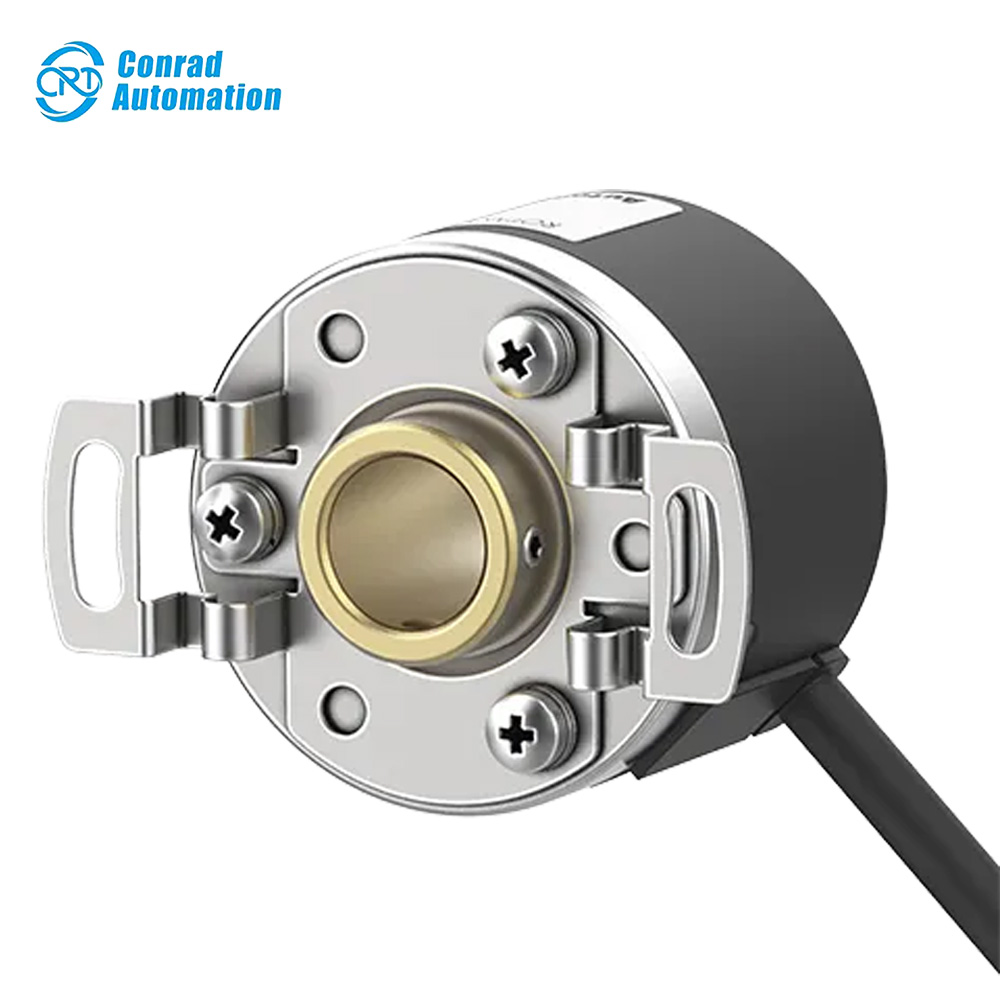

Shaft inner diameter : Ø8mm Max. response frequency : 300kHz Max. allowable revolution : 5000rpm Starting torque : Max. 50gf.cm(max. 0.0049N.m) Resolution : 1024P/R Control output : Totem pole Power voltage : 12-24VDC  ±5%(ripple P-P: max. 5%) Connection type : Radial cable type Protection structure : IP50

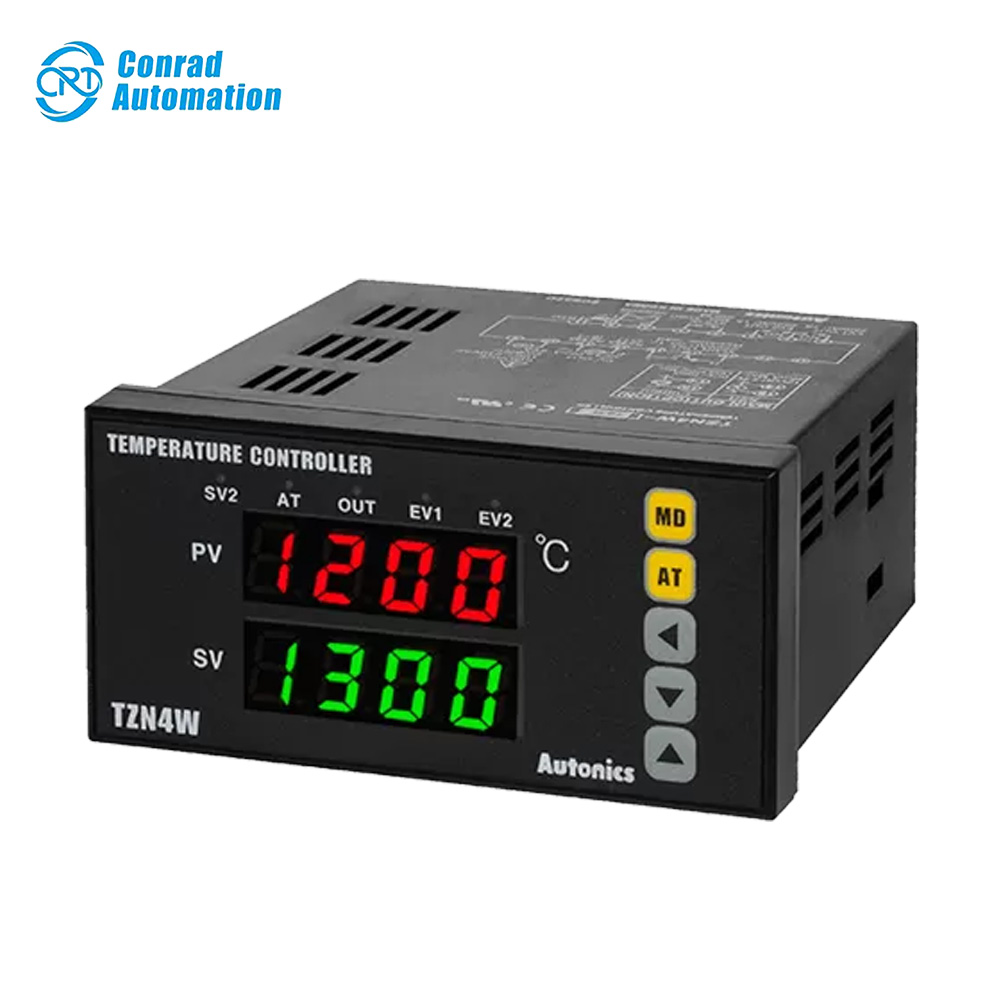

Display method : 4-digit 7-segment LED Control method : ON/OFF control, P, PI, PD, PIDF, PIDS control Input specification : Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT)RTD: DPt100Ω, JPt100ΩAnalog: 1-5VDC , 0-10VDC , DC4-20mA Sampling cycle : 500ms Control output : Current output(DC4-20mA) Power voltage : 100-240VAC~ 50/60Hz

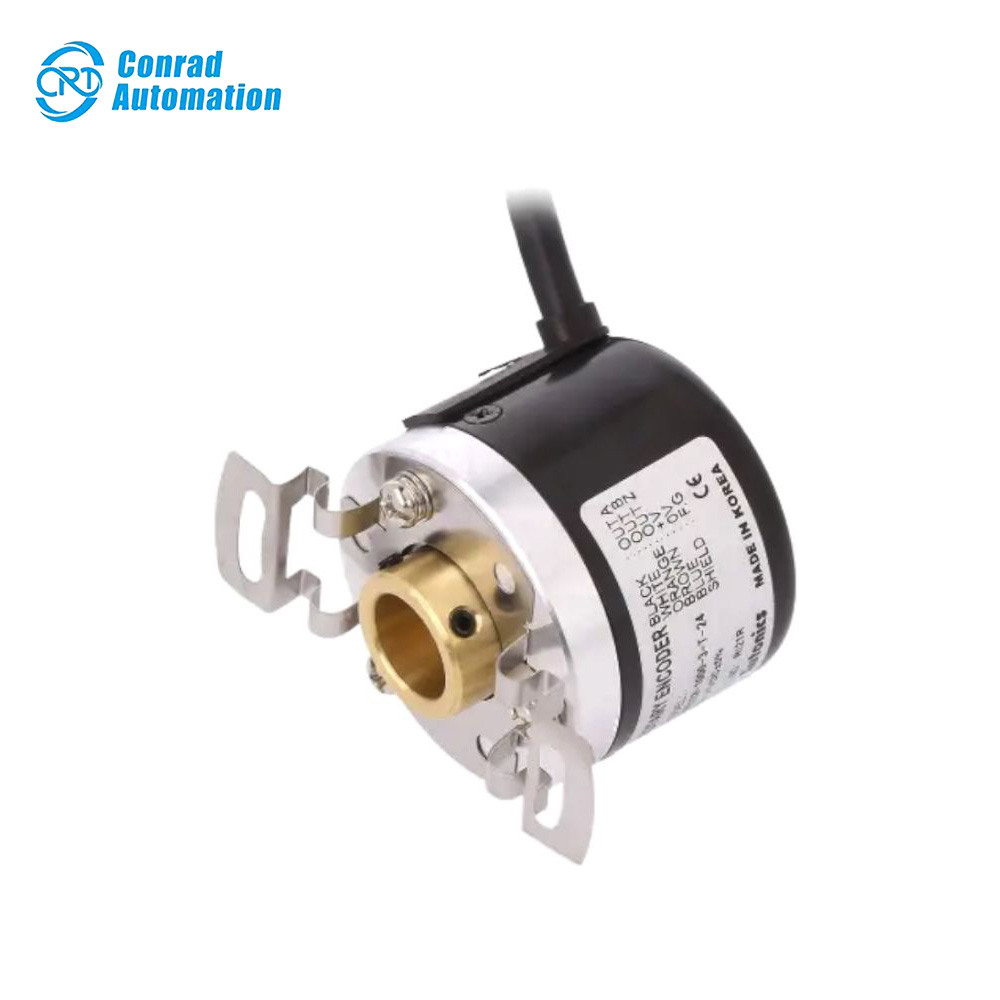

Shaft inner diameter : Ø10mm Max. response frequency : 300kHz Max. allowable revolution : 5000rpm Starting torque : Max. 50gf.cm(max. 0.0049N.m) Resolution : 250P/R Control output : Totem pole Power voltage : 12-24VDC  ±5%(ripple P-P: max. 5%) Connection type : Radial cable type Protection structure : IP50

PRD12-4DN2 Remote proximity switch

PRDL18-14DP2 Remote proximity switch

PRD12-8DN2 Remote proximity switch

PRDL18-7DN Remote proximity switch
